Stand alone equipment
單機設備
Device description
The equipment is designed on the basis of absorbing and digesting foreign prototype.  It has the advantages of automatic sterilization temperature control and stepless sterilization time adjustment. It can be widely used in the sterilization and cooling of acidic dairy products, juice drinks, electrolyte drinks, wine and condiments packaged in various bottles, cans, PET bottles, paper boxes, roof bags and so on.  The equipment can be carried out according to the sterilization conditions and production requirements of users.
working principle
This equipment adopts circulating warm water preheating, circulating hot water sterilization, circulating warm water pre-cooling, cooling water spray cooling, four stages of treatment.
technical specification
產品型號 JP-PLS-1000 JP-PLS-2000 JP-PLS-3000 JP-PLS-5000
最高殺菌溫度 100℃ 100℃ 100℃ 100℃
殺菌輸送帶寬度mm 1500 1500 1500 1500
輸送帶線速度mm/min 110-553 110-553 110-553 110-553
加熱蒸汽壓力Mpa 0.4 0.4 0.4 0.4
殺菌段長度mm 9000 16000 22000 32000
預冷段長度mm 1200 1600 1800 2200
冷卻段長度mm 3000 5000 8000 10000
加熱循環水量m3 21 25 35 50
功率KW 9.6 10.6 13.6 16.5
外形尺寸mm 9880*2250*1735 17880*2250*1735 23800*2250*1735 34880*2250*1735
Features
Can store more than 500 sterilization formula
Strong adaptability, according to different food processing technology using multi-stage processing, the whole process can be divided into up to 20 steps to complete.
The product temperature probe can be prepared to realize the automatic detection and calculation of F value.
Heat distribution is uniform and meets FDA requirements.
High degree of automation, high control precision.
Sterilization method can be transformed according to different packaging.

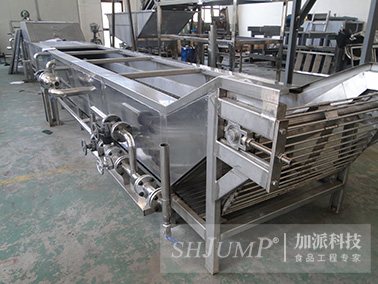

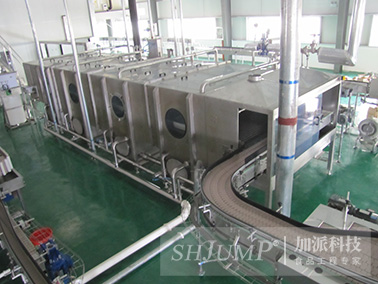

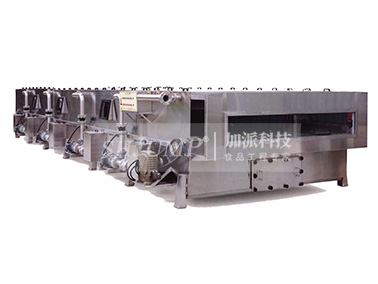

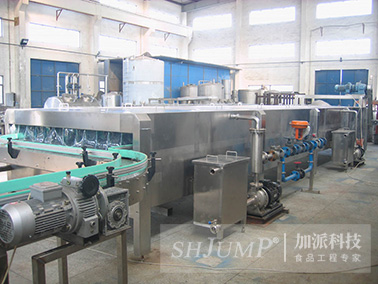

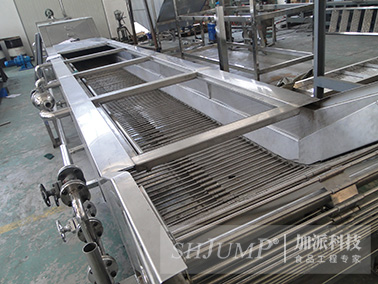

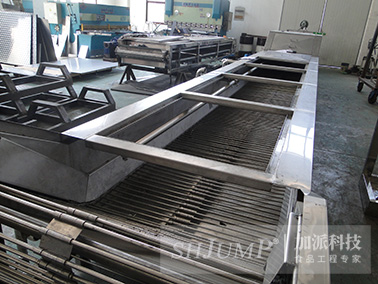

Finished product display
